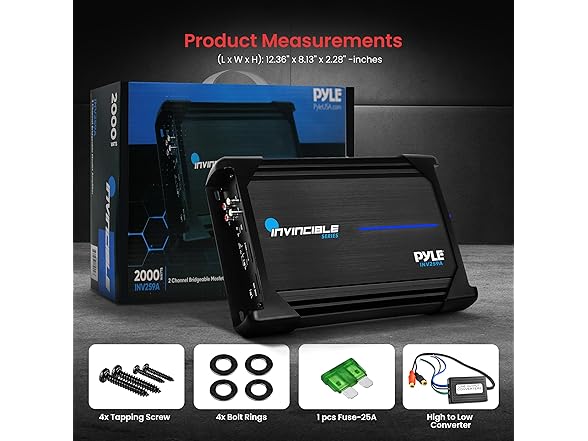

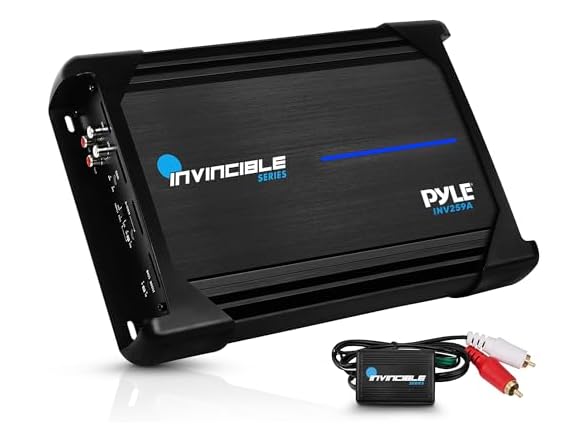

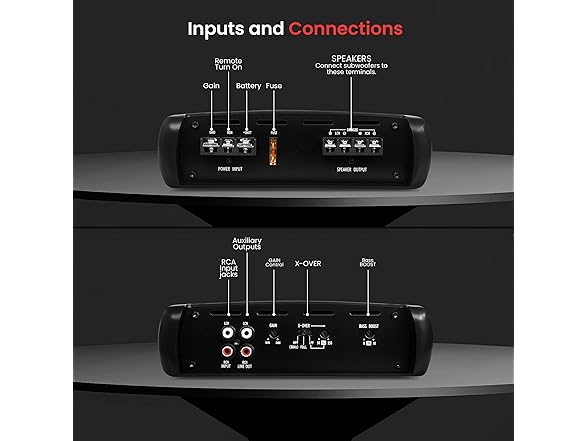

Features: - Class “AB” High-Current Dual Discrete Drive Stages - Mosfet PWM Power Supply - Electronic Crossover Network - Low Pass Filter Controls - High Pass Filter Controls - Bass Boost Circuitry - 2 Channel Bridgeable MOSFET Amplifier - 2 Ohm Stable - PWM (Pulse-Width-Modulation) System - Custom Terminal Block for Speaker Connection - Thermal / Overload / Short Circuit Protection - Soft Turn On/ Off - Advanced Protection Circuitry - Chrome RCA Inputs, Power Speaker Terminals - Line Output (L/R) Channels - 5 Way Protections - Power + Protection LED Indicators What's in the Box: - Invincible Series Amplifier - High to Low Converter - (4) Tapping Screw 0.16 x 0.63’’ -inches - (4) Spacer F4.0 - (1) Fuse-40A Technical Specs: - 2 x 500 Watt RMS @ 4 Ohm - 2 x 650 Watt Peak @ 4 Ohm - 2 x 650 Watt RMS @ 2 Ohm - 2 x 1000 Watt Max @ 2 Ohm - Bridgeable Power Max @ 4 Ohms: 1 x 2000W - Frequency Response 20 Hz-50kHz (±3dB) - Output Power @ 14.4v DC, 50Hz - Input Impedance: 20K Ohms - S/N Ratio: >90dB - T.H.D.: <0.01% - LPF Freq. Resp.: 50Hz - 250Hz - HPF Freq. Resp.: 80Hz - Bass Boost(50Hz): 0 - 12dB - Input Sensitivity:0.2V~6V - Fuse: 40A x 1 - Product Dimensions (L x W x H): 12.36'' x 8.13'' x 2.28'' -inches
- 2000 WATT MAX POWER: The 2000 watt 2 channel high power mosfet amplifier has a low/high pass filter, ideal for your stereo entertainment system. The Pyle Class AB Mosfet Amp also has a soft turn on/off to save energy & line output (L/R) Channels
- MOSFET PWM POWER SUPPLY: Pyle Mosfet Amplifier with an electronic crossover network and Mosfet PWM power supply that perfectly regulates the output voltage and current by eliminating the secondary feedback
- IDEAL FOR AUDIO ENTERTAINMENT: Featuring Pyle Mosfet Amplifier that pursue excellence with crispy and loud sound, this amp gives you that ideal entertainment system, perfect and ideal for studio and on stage performances
- SHORT CIRCUIT PROTECTION: Equipped with an advanced protection circuitry, power + protection LED Indicators and a custom terminal block for speaker protection from thermal/overload / short circuit conditions. Keeps amp safe & secure for long term use
- COMPACT AND LIGHTWEIGHT: The Pyle Class AB Mosfet Amplifier is compact with an exact dimension of 12.36'' x 8.13'' x 2.28'' -inches and lightweight. It is also equipped with a PWM system with Chrome RCA inputs, and power speaker terminals
Warranty: 90 Day Woot Limited Warranty
