Features
The units in this sale are being sold as open box condition. That means that they have been opened due to being a photo sample, a tested good customer return or having damaged packaging. Some non-essential items may be missing from the box. The unit may not be shipped in retail packaging. That is the reason for the reduced sale price and the reduced warranty.
Dolby Atmos
With Dolby Atmos, sound comes from all directions, including overhead, to create a truly immersive experience with astonishing clarity, richness, and depth. It's the first audio format based on audio objects rather than channels. The specific sounds of people, music, and action can be placed and moved all around you in three-dimensional space, so you feel like you're inside the scene. Filmmakers can now craft a sound experience that's in step with the visuals, putting you in the middle of the action.
Built-in Wi-Fi and Bluetooth
With built-in Wi-Fi and Bluetooth, the VSX-1130-K gives you two ways to enjoy your music wirelessly from your iPhone, Android, PC, laptop or any other compatible sources. Plus, the VSX-1130 is equipped with Dual antennas providing Dual Band Wi-Fi (2.4GHZ and 5.8GHZ) for a much greater network range and throughput.
Custom Calibration with MCACC Pro
MCACC Pro takes MCACC (Multi-Channel Acoustic Calibration) a step further. In addition to automatically compensating for speaker size, level and distance to the listening position, as standard MCACC does, MCACC Pro analyzes and corrects the phase and group delay characteristics that are caused by the filtering systems in the speakers. This adjustment is also performed between different channels, in order to provide a smooth flow. Additional features include independent correction for dual subwoofers, and speaker position adjustments in 1-millimeter increments. For all channels, MCACC Pro corrects phase differences in the original audio, as well as the sounds emitted from the speakers.

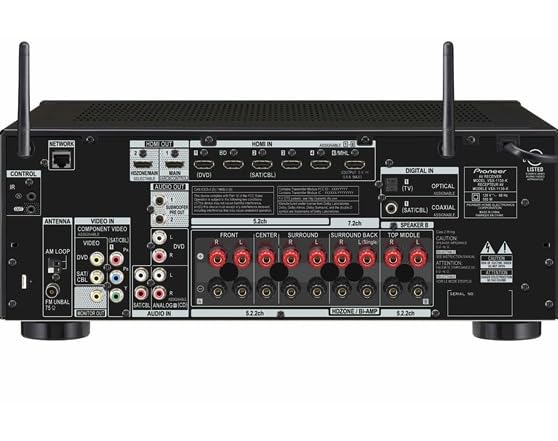

To help make the setup process easier, Pioneer has improved the design of the rear panel on all 2015 receiver models. The layout is simpler, the spacing is better, the text is easier to read, and the speaker connections are more clearly labeled.
On-Screen Overlay
If your home theater system is enclosed in a cabinet, it's often difficult to know the status of certain functions. With On Screen Display (OSD), your receiver's basic information, such as volume, input, and surround mode, will overlay on screen as you make adjustments with the remote, so you don't have to switch to a blank screen background. If you prefer not to see the overlay, the feature can be disabled.
Smart Connection with Wi-Fi Setup App
Connecting the VSX-1130-K to your home Wi-Fi network is easy with a new Apple iOS and Android App. Simply download the app to your compatible smartphone and walk through the simple connection process. The app transfers all your Wi-Fi settings from the smartphone to the AV receiver.
Multi-Zone Audio and Video
The HDZone output feature of the VSX-1130-K allows you to simultaneously enjoy different HDMI sources in multiple rooms. So you can watch a Blu-ray movie in the main room, while someone else is watching another HDMI Source (Roku, Cable, etc.) in another--all conveniently managed by the remote control or iOS/Android application iControlAV5.
ESS Sabre 24-Bit DAC
The VSX-1130 incorporates the ESS9006 Sabre Premier audio DAC (Digital-to-Analog Converter). Typically found on AV receivers twice as expensive, this new DAC provides superior Digital-to-Analog conversion with far less jitter than other DACs.
Playback Prowess
The VSX-1130 delivers the high-resolution music playback you demand with support for 192 kHz 24-bit AIFF, WAV, and FLAC, Apple Lossless up to 96kHz 24-Bit and DSD (SACD) files at 2.8 MHz. Compressed formats, such as MP3, WMA, and AAC are also supported. Stream files from your home network, smartphone device, tablet, or even the front USB. The VSX-1130-K also supports multi-channel WAV and FLAC files.
Endless Entertainment
With the power of Internet Radio, the VSX-1130-K gives you nearly unlimited listening options. Enjoy thousands of Internet radio stations around the world with vTuner and access all your favorite tunes from Pandora and Spotify Connect--complete with on-screen album art and music information. Spotify Connect is a premium subscription feature that lets you play and control Spotify with your compatible smart devices.
ECO Mode
All Pioneer AV receivers feature an energy-saving ECO Mode that, when enabled, achieves a standby power consumption of only 0.1 watt. With a host of convenience features, including Network Standby and HDMI CEC support, ECO Mode analyzes your sources in real time, adjusting power consumption accordingly to meet your needs. Or you can manually select the power-saving settings that are right for you.
Shipping Note: Shipping to Alaska and Hawaii is not available for this item.
A physical address is required for delivery. No Military or PO Box shipments available
Warranty: 30 Day Woot
Specs
Power: | |
---|---|
Amplifier Type | Direct Energy |
Channels | 7.2 |
Power Output | 6 Ohms: 165 W per channel (1 kHz, THD 1.0%, 1-channel driven FTC) 8 Ohms: 100 W per channel (20 Hz-20 kHz, THD 0.08%, 2-channel driven FTC) |
Audio: | |
---|---|
Formats Supported | Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Surround, DTS-HD Master Audio, DTS-ES, DTS Neo:6, DSD Direct Playback via Network/USB (2.8 MHz), DSD Disc (SACD) Playback via HDMI (2.8 MHz) |
DSP | 2 x Digital Core Engines with Texas Instruments Aureus |
Digital-to-Analog Converter (DAC) | Type: 192 kHz / 24-bit SABRE Premier Audio DAC (ES9006S) for 7.2-ch |
Supported File Formats | AIFF, Apple Lossless, WAV, FLAC, MP3, WMA, AAC, DSD |
Video: | |
---|---|
Pass-Through | Yes (up to 4K) with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:2/36-bit) |
Upscaling | Yes (up to 4k) |
3D Support | Yes |
Deep Color / x.v. Color Support | Yes (36-bit) |
Connectivity: | |
---|---|
MHL | Yes |
ARC (Audio Return Channel) | Yes |
DLNA | Version: 1.5 |
Bluetooth | Yes |
Wi-Fi | Yes, dual-band 2.4 / 5 GHz |
AirPlay | Yes |
Input | 7 x HDMI (1 x front, 5 x assignable, 1 x MHL) 1 x USB 5 V / 1 A (front) 2 x Composite Video 1 x Component Video (assignable) 3 x Stereo RCA (1 x assignable) 1 x Digital Optical (assignable) 1 x Digital Coaxial (assignable) 1 x IR |
Output | 2 x HDMI (1 x MAIN, 1 x MAIN/HDZONE) 1 x Composite Video 2 x Subwoofer 1 x IR 1 x Headphone (front) |
Other Ports | 1 x Ethernet 1 x Calibration Microphone (front) 1 x AM Antenna 1 x FM Antenna |
Speaker Connectors | Front Left Front Right Center Surround Right Surround Left Surround Back Right Surround Back Left Top Middle Right Top Middle Left |
AM/FM Presets | 63 Preset AM / FM Tuner |
General: | |
---|---|
Sleep Timer | Yes |
Remote Control | Yes |
Graphical User Interface | Yes, with Album Artwork (HDMI only) |
Power Requirements | 120 VAC, 60 Hz |
Power Consumption | Active: 550 W Standby: 0.1 W (standby) |
Dimensions (WxHxD) | 17.1 x 6.6 x 14.3 (434 x 168 x 363 mm) |
Weight | 21.6 lb (9.8 kg) |
In the box: (Some items may be missing due to this product being open box condition)

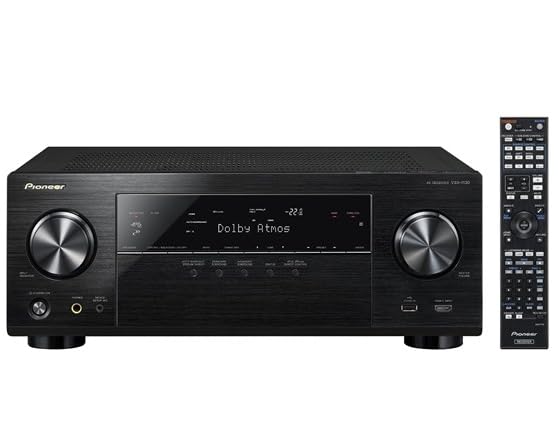

- Pioneer VSX 1130-K 7.2-Channel A/V Network Receiver
- Remote Control
Specs
Power: | |
---|---|
Amplifier Type | Direct Energy |
Channels | 7.2 |
Power Output | 6 Ohms: 165 W per channel (1 kHz, THD 1.0%, 1-channel driven FTC) 8 Ohms: 100 W per channel (20 Hz-20 kHz, THD 0.08%, 2-channel driven FTC) |
Audio: | |
---|---|
Formats Supported | Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Surround, DTS-HD Master Audio, DTS-ES, DTS Neo:6, DSD Direct Playback via Network/USB (2.8 MHz), DSD Disc (SACD) Playback via HDMI (2.8 MHz) |
DSP | 2 x Digital Core Engines with Texas Instruments Aureus |
Digital-to-Analog Converter (DAC) | Type: 192 kHz / 24-bit SABRE Premier Audio DAC (ES9006S) for 7.2-ch |
Supported File Formats | AIFF, Apple Lossless, WAV, FLAC, MP3, WMA, AAC, DSD |
Video: | |
---|---|
Pass-Through | Yes (up to 4K) with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:2/36-bit) |
Upscaling | Yes (up to 4k) |
3D Support | Yes |
Deep Color / x.v. Color Support | Yes (36-bit) |
Connectivity: | |
---|---|
MHL | Yes |
ARC (Audio Return Channel) | Yes |
DLNA | Version: 1.5 |
Bluetooth | Yes |
Wi-Fi | Yes, dual-band 2.4 / 5 GHz |
AirPlay | Yes |
Input | 7 x HDMI (1 x front, 5 x assignable, 1 x MHL) 1 x USB 5 V / 1 A (front) 2 x Composite Video 1 x Component Video (assignable) 3 x Stereo RCA (1 x assignable) 1 x Digital Optical (assignable) 1 x Digital Coaxial (assignable) 1 x IR |
Output | 2 x HDMI (1 x MAIN, 1 x MAIN/HDZONE) 1 x Composite Video 2 x Subwoofer 1 x IR 1 x Headphone (front) |
Other Ports | 1 x Ethernet 1 x Calibration Microphone (front) 1 x AM Antenna 1 x FM Antenna |
Speaker Connectors | Front Left Front Right Center Surround Right Surround Left Surround Back Right Surround Back Left Top Middle Right Top Middle Left |
AM/FM Presets | 63 Preset AM / FM Tuner |
General: | |
---|---|
Sleep Timer | Yes |
Remote Control | Yes |
Graphical User Interface | Yes, with Album Artwork (HDMI only) |
Power Requirements | 120 VAC, 60 Hz |
Power Consumption | Active: 550 W Standby: 0.1 W (standby) |
Dimensions (WxHxD) | 17.1 x 6.6 x 14.3 (434 x 168 x 363 mm) |
Weight | 21.6 lb (9.8 kg) |
In the box: (Some items may be missing due to this product being open box condition)
- Pioneer VSX 1130-K 7.2-Channel A/V Network Receiver
- Remote Control
