Marantz Professional PMD-526C Media Player With Bluetooth And RS-232

Condition New

Quantity Limit 3 per customer

Sold Out

Want more great deals? Sign up for our Daily Digest emails!

Features

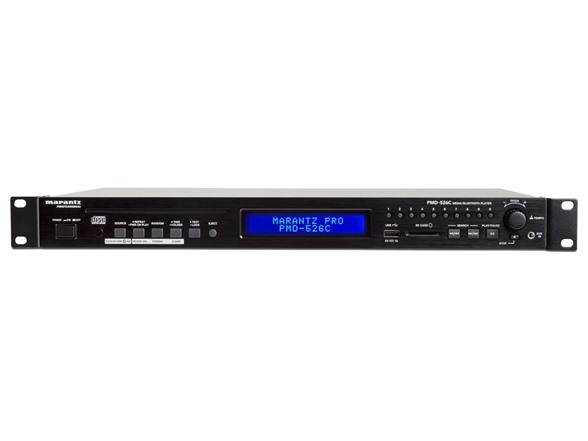

The Marantz Professional PMD-526C is a highly versatile yet affordable media player that excels in applications where users bring their own devices to the venue. The PMD-526C plays not only CD media but provides Bluetooth connectivity, USB playback, SD card functionality and a 3.5mm AUX input.

Bluetooth 4.0 pairing to (8) devices
Slot-loading CD transport & Pitch and Tempo Control
Playback from SD/SDHC media
USB host port for file playback & 3.5mm AUX input for playback from portable players
Balanced (XLR) and unbalanced (RCA) outputs

Shipping Note: Shipping to Alaska, Hawaii, PO Boxes and APO addresses not available for this item

Warranty: 90 Day Woot Limited Warranty

Specs

Audio Specifications

Audio channels: 2 channels / stereo
Frequency response: 10 - 20,000 Hz, +/- 1.0dB
Dynamic range: > 85dB (10- 20,000 Hz A-weighted)
Signal to Noise ratio: > 90dB (1kHz, 0db, A-weighted)
Channel separation: > 80dB (1kHz, 0dB, A-weighted)
Total Harmonic Distortion (THD): < 0.01% (1kHz, 0dB, A-weighted)

Analog Output (unbalanced)

Type: RCA terminal
Load impedance: > 10 kΩ
Output level: 2 Vrms / at 10 kΩ load

Analog Output (balanced)

Type: XLR
Load impedance: > 10 kΩ
Output level: +4 dBu

Input - AUX IN

Type: 1/8” (3.5mm) TRS terminal
Input impedance: > 10 kΩ
Maximum input level: 1 Vrms

Bluetooth Specifications

Output class: Class 2
Bluetooth version: 4.0
Supported profiles: A2DP, AVRCP, HFP, SPP, BAS, BLE, DIS, FMP, HRP, HRS, HTP, HTS, IAS, LLS
Bluetooth range: 49 feet (15m)

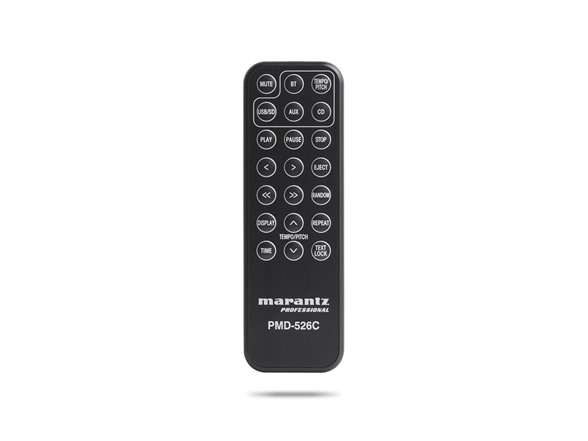

Remote Control

Tyoe: IR Remote
Infrared Transmission Protocol: NEC format
Transmit output level: >200mVp-p

Serial Remote

D-sub 9-pin female RS-232C
Mode: Full duplex
Baud rate: 9600/38400 b/s (selectable in the menu)
Data: 8bits
Start bit: 1bit
Stop bit: 1bit
Parity: none
Flow control: none

Audio File / SIGNAL

Sample rate: CD-DA, Audio file 44.1kHz
Word length: CD-DA, Audio file 16-bit
File format: Audio file WAV/MP3/AAC
Bit rate: MP3, AAC, CBR/VBR ST/Mono 32~320kps
D3 tag: MP3 V1.x~2.4

CD Drive

File system: CD-DA (CD-TEXT), CD-ROM (ISO9660)
Disc: CD, CD-R

USB Storage Device

File system: FAT 16/32
Media type: Flash/ HDD

SD/SDHC

File system: FAT 16/32

Environmental

Operating temperature: 41° - 95° F (5° - 35° C)
Operating humidity: 25 ~ 85% non-condensing

General

LCD Display: LCD 2 lines, 16 characters x 2 lines LCM display
Power requirements: 100-230 VAC
Power consumption: 15W
Dimensions (WHD): 19" x 1.73" x 9.4" (483 x 240 x 44mm)
Weight: 6.4 lbs (2.92kg)

In the box:

PMD-526C
Power Cable
Remote Control
RCA Cable
(2) Rack Ears
(6) Rackmount Screws
User Guide

Specs

Audio Specifications

Audio channels: 2 channels / stereo
Frequency response: 10 - 20,000 Hz, +/- 1.0dB
Dynamic range: > 85dB (10- 20,000 Hz A-weighted)
Signal to Noise ratio: > 90dB (1kHz, 0db, A-weighted)
Channel separation: > 80dB (1kHz, 0dB, A-weighted)
Total Harmonic Distortion (THD): < 0.01% (1kHz, 0dB, A-weighted)

Analog Output (unbalanced)

Type: RCA terminal
Load impedance: > 10 kΩ
Output level: 2 Vrms / at 10 kΩ load

Analog Output (balanced)

Type: XLR
Load impedance: > 10 kΩ
Output level: +4 dBu

Input - AUX IN

Type: 1/8” (3.5mm) TRS terminal
Input impedance: > 10 kΩ
Maximum input level: 1 Vrms

Bluetooth Specifications

Output class: Class 2
Bluetooth version: 4.0
Supported profiles: A2DP, AVRCP, HFP, SPP, BAS, BLE, DIS, FMP, HRP, HRS, HTP, HTS, IAS, LLS
Bluetooth range: 49 feet (15m)

Remote Control

Tyoe: IR Remote
Infrared Transmission Protocol: NEC format
Transmit output level: >200mVp-p

Serial Remote

D-sub 9-pin female RS-232C
Mode: Full duplex
Baud rate: 9600/38400 b/s (selectable in the menu)
Data: 8bits
Start bit: 1bit
Stop bit: 1bit
Parity: none
Flow control: none

Audio File / SIGNAL

Sample rate: CD-DA, Audio file 44.1kHz
Word length: CD-DA, Audio file 16-bit
File format: Audio file WAV/MP3/AAC
Bit rate: MP3, AAC, CBR/VBR ST/Mono 32~320kps
D3 tag: MP3 V1.x~2.4

CD Drive

File system: CD-DA (CD-TEXT), CD-ROM (ISO9660)
Disc: CD, CD-R

USB Storage Device

File system: FAT 16/32
Media type: Flash/ HDD

SD/SDHC

File system: FAT 16/32

Environmental

Operating temperature: 41° - 95° F (5° - 35° C)
Operating humidity: 25 ~ 85% non-condensing

General

LCD Display: LCD 2 lines, 16 characters x 2 lines LCM display
Power requirements: 100-230 VAC
Power consumption: 15W
Dimensions (WHD): 19" x 1.73" x 9.4" (483 x 240 x 44mm)
Weight: 6.4 lbs (2.92kg)

In the box:

PMD-526C
Power Cable
Remote Control
RCA Cable
(2) Rack Ears
(6) Rackmount Screws
User Guide
