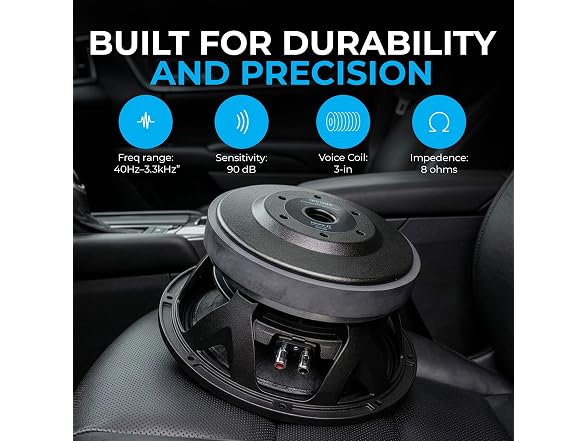

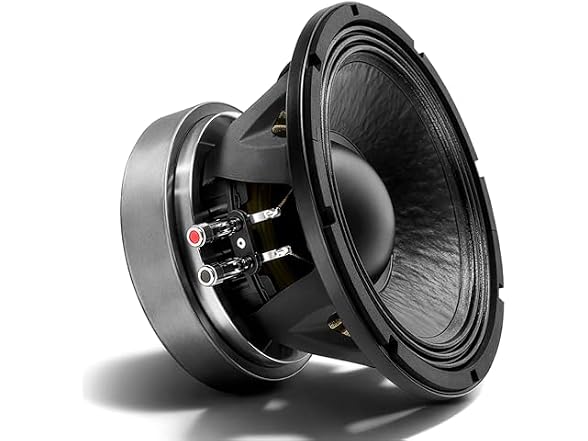

The Beyma POWER10IX-8 is a professional-grade 10-inch driver designed for high-output audio applications, featuring an 8-ohm impedance and a power capacity of 500W AES and 1,000W program. This high-performance transducer is built with a rugged die-cast aluminum basket and a 3-inch edgewound copper voice coil, ensuring structural integrity and efficient thermal management during operation. Its high-quality paper cone and durable rubber surround are engineered to deliver a precise frequency response from 40Hz to 3.3kHz, producing a controlled and articulate low-end and mid-bass. Engineered for significant mechanical stability, the unit offers a 13.0 mm Xmax and a 49 mm peak-to-peak damage limit, allowing for extended linear travel and high-excursion peaks. With a sensitivity of 90dB and a BL factor of 19 N/A, the motor assembly accurately manages the 95-gram moving mass. Optimized for custom cabinet integration, it features a 41Hz resonant frequency and a total Q (Qts) of 0.43, making it an ideal choice for compact vented or sealed enclosure designs that require professional-level reliability and soundstage balance.

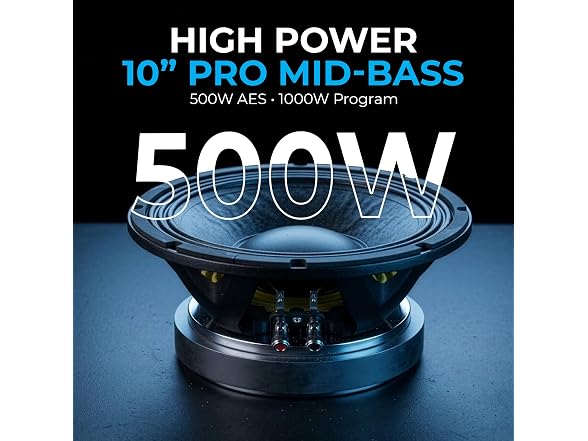

- POWER AND EFFICIENCY : The POWER10IX-8 is a 10-inch driver engineered for high-demand audio environments. It manages 500W AES and 1,000W program power with an 8-ohm impedance. With a sensitivity of 90dB and a robust ferrite magnet, it converts power into clean, impactful sound. The die-cast aluminum basket provides the structural integrity needed for consistent, high-fidelity performance under heavy loads.
- BASS PRECISION : Designed for deep, smooth, and tight bass, this speaker features a premium paper cone paired with a durable rubber surround. This combination ensures a controlled mid-bass response across a frequency range of 40Hz to 3.3kHz. Whether used in professional monitors or high-end home setups, it delivers an articulate low-end that remains clear even during complex musical passages.

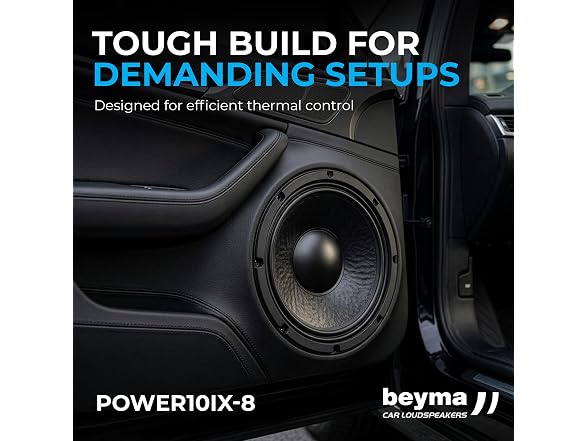

- ADVANCED VOICE COIL ENGINEERING : At its core is a 3-inch (76.2mm) voice coil featuring edgewound copper wire. This specialized winding improves thermal dissipation and efficiency. Combined with a 13mm Xmax and a massive 49mm peak-to-peak X-damage limit, the driver allows for significant linear excursion. This mechanical stability ensures the audio stays distortion-free even when pushed to its physical limits.

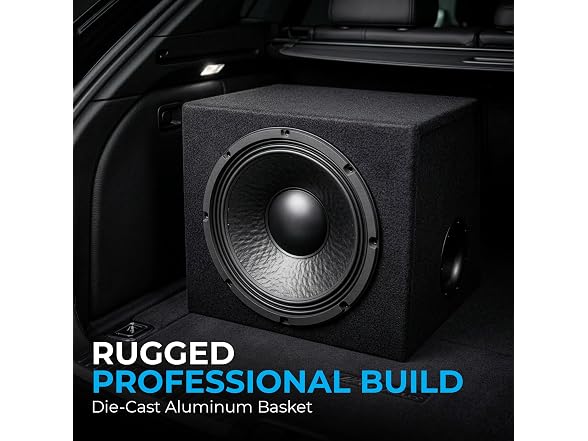

- ROBUST PROFESSIONAL CONSTRUCTION : Built to last, this unit features high-grade materials including a die-cast aluminum frame and an 8-bolt mounting pattern for secure installation. Weighing 18.3 lbs, the motor assembly boasts a BL factor of 19 N/A, providing the necessary force to control the 95-gram moving mass. This heavy-duty build is specifically designed to withstand the rigors of constant professional use.

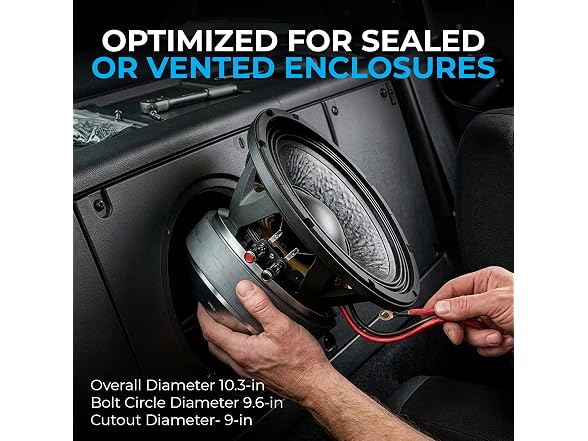

- OPTIMIZED ENCLOSURE INTEGRATION : Technical precision is guaranteed with Thiele-Small parameters like a 41Hz resonant frequency and a 0.43 total Q (Qts). With an equivalent volume (Vas) of 32.5 liters, it is perfectly suited for compact vented or sealed box designs. These specs provide engineers with the data needed to achieve a balanced soundstage and seamless integration with existing crossover components.
