Zmodo PKD-DK8001-1TB 8-Channel / 8-Camera Security System with Sharp CCD & 1TB Hard Drive

Limit 3 per customer
add to cart
You missed it! But Today's Woot is waiting!

Parable of the Standalone DVR

Security is an illusion. So you better try to get the bad guys to believe it.

Consider two friends. One chose the path of simplicity and spirituality. He renounced all worldly goods beyond a simple cloak and a rice bowl. His time was spent in meditation on the goodness and beauty of the universe.Each morning, he greeted the rising dawn with a prayer of heartfelt thanks.

The other chose the material way. He worked and worked to accumulate more. And when he was not working, he was worrying about losing all that he had. He installed an 8-camera, 8-channel Zmodo security system to protect his many, many things. But no matter how much he assured himself that its night vision, 1TB hard drive, and three record modes would make his property secure, he was still haunted by visions of losing it all.

I ask you, which man was happier?

The answer: the second one, because somebody stole the first one's bowl and cloak, so he was always cold and his hands were always greasy and sticky from holding rice.

Back to top


Protect Your Stuff
2-year protection plan: $31.99 Buy Now

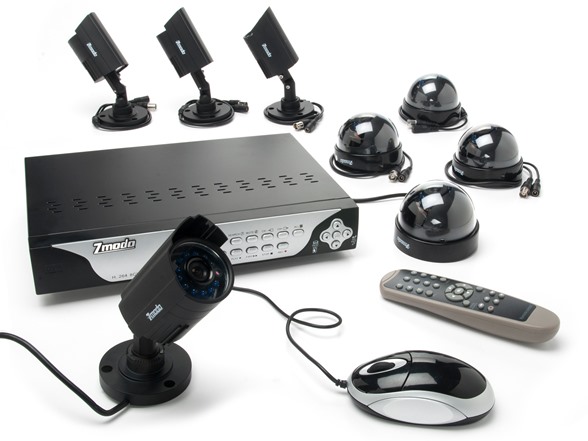

The PKD-DK8001-1TB kit includes a H.264 standalone DVR with 1TB HD and 8 indoor/outdoor security cameras providing everything you need to have your surveillance system up and running in your home or business quickly and easily.

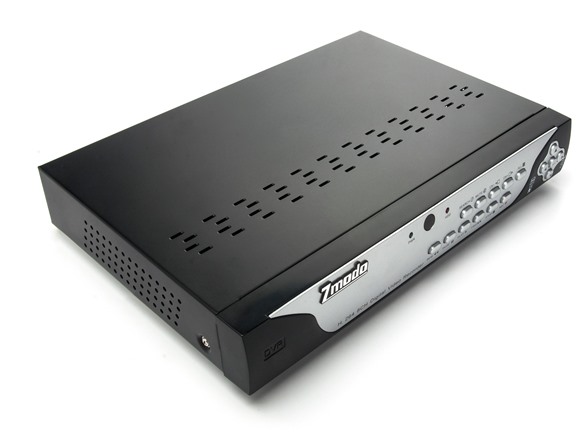

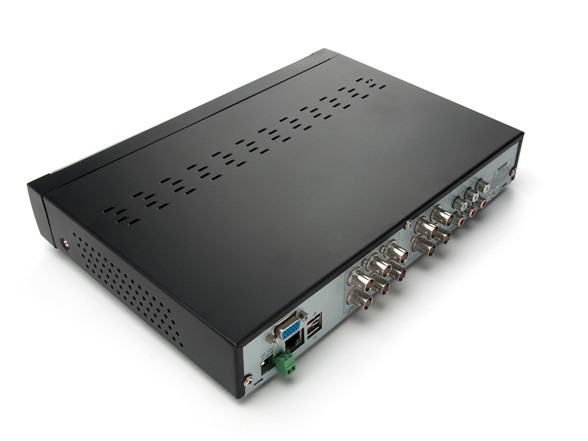

The DVR-H9108V is an 8-channel, fully integrated, real time, and hardware based standalone digital video recorder. This standalone DVR is based on an embedded Linux operating system and includes a remote control for easy setup and operation. With network access, VGA video output, and USB 2.0 backup, this DVR is perfect for your home or small business. The DVR also features the most updated 3G mobile live preview via mobile phone.

The cameras included in the kit are 1/3" Sharp color CCD night vision cameras. The bullet camera has a weatherproof metal case and sun/rain shield that can be wall or ceiling mounted. It works well under all weather condition. The dome design camera can be mounted almost anywhere indoors, All cables and power supplies are included.


  • 8CH Surveillance Real Time DVR
  • Embedded Linux OS
  • 1TB HD Installed
  • H.264 Video Compression
  • Video Input / Output: BNC 8 / BNC 2
  • Video Output: VGA
  • Audio Input / Output: RCA 1 / RCA 1
  • Signal System: NTSC / PAL
  • Display/Record: 240 fps
  • Recording Mode: Continuous / Scheduled / Motion
  • Playback Search: Time & Date, Event List
  • Network: RJ45 TCP/IP or DDNS
  • Remote Access: LAN or IE Browser
  • IR Remote Control
  • PTZ via RS-485 Port
  • Support Remote View via Smart Phone & 3G Mobile:
    • iPhone™
    • Blackberry™ OS V4.7
    • Windows Mobile™ Pro 5.0 & 6.1
    • Symbian S60 3rd & S60 5th


  • 1/3" Sharp Color CCD Image Sensor
  • 420 TV Lines, Horizontal
  • 3.6mm Lens
  • Signal: NTSC
  • Iris: Auto
  • Night Vision Min. Light: 0 Lux (IR On)
  • IR Irradiation Distance: 50' (15m)
  • Bullet Camera: Weatherproof
  • Mount: Wall or Ceiling
  • Video Connector: BNC
  • Power Connector: RCA 12V DC

Shipping Note: Shipping to Alaska and Hawaii is not available for this item

A physical address is required for delivery. No Military or PO Box shipments available

Warranty: 1 Year Zmodo


Video Compression: H.264
Video System: NTSC / PAL
Operation System: Linux Based
Video Input / Output: BNC 8-Channel Input / 2-Channel Output
Other Video Output: VGA
Audio Input / Output: RCA 1-Channel Input / 1-Channel Output
Display Frame Rate: NTSC: 240 fps @ D1 / PAL: 200 fps @ D1
Display Resolution: NTSC: D1 (704 x 480) / PAL: D1 (704 x 576)
Recording Frame Rate: NTSC: 240 fps @ CIF / PAL: 200 fps @ CIF
Record Resolution: Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288)
Record Mode: Continuous / Time Schedule / Motion Detection
Recording Pack Time: 15/30/45/60mins Selectable
Simplex / Duplex /Triplex / Pentaplex: Pentaplex
Network Function: Support Live View with IE & Mobile Phone
Network: RJ45, 10M/100M
Net Protocol: TCP/IP, PPPoE, DHCP and DDNS
Remote Access: LAN or Internet Browsing
PTZ Control: RS-485
HDD Interface: SATA, Support between 250GB and 2TB (1TB hard drive installed)
USB: USB Backup/USB 2.0
Remote Control: IR Remote Control
Dimension: 11.81"(W) x 8.83"(D) x 1.85"(H)

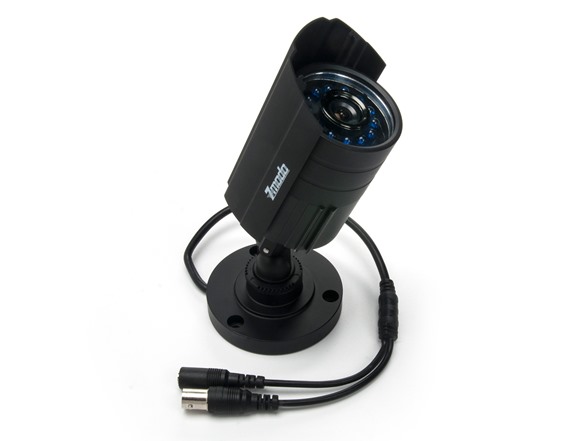

Bullet Cameras:
Image Sensor: 1/3" Color Sharp CCD Sensor
Effective Pixels: NTSC: 510 (H) x 492 (V)
Lens: 3.6mm
Scanning System: 2:1 Interlace
Infrared Irradiation Distance: 12 Ultra Strong Infrared LEDs - Visible up to 50 ft (15m)
Minimum Illumination: 0 Lux (IR On)
Horizontal Resolution: 420 TV-Lines
Synchronization System: Internal Synchronization
S/N Ratio: > 48dB
Gamma: 0.45
Weatherproof: Yes
Auto Gain Control: Built-in
Power: 12V DC
Operation Temperature: 14°F~122°F / -10°C ~50°C
Back Light Compensation: Auto
Video Out: 1.0p-p 75O BNC
Auto Iris: Video / DC
Dimensions: 3.3"(W) x 2.3"(D) x 2.3"(H)
Weight: 9.6 oz

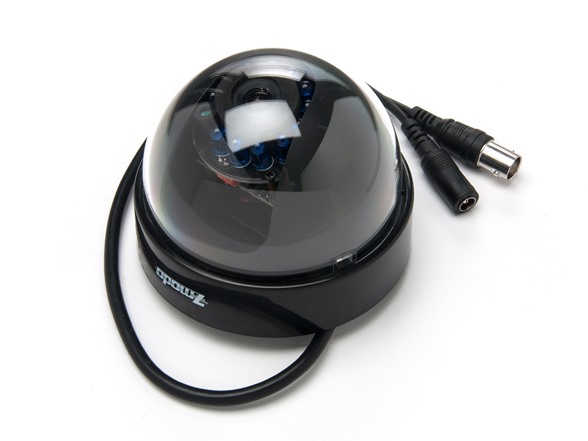

Dome Cameras:
Image Sensor 1/3" Color Sharp CCD Sensor
Effective Pixels NTSC: 510 (H) x 492 (V)
Lens Mount 3.6mm
Scanning System 2:1 Interlace
Infrared Irradiation Distance 12 Ultra Strong Infrared LEDs - Visible up to 50ft (15m)
Minimum Illumination 0 Lux (IR On)
Horizontal Resolution 420 TV-Lines
Synchronization System Internal Synchronization
S/N Ratio > 48dB
Gamma 0.45
Auto Gain Control Built-in
Power 12V DC
Operation Temperature 14°F~122°F / -10°C ~50°C
Back Light Compensation Auto
Video Out 1.0V p-p 75O BNC
Auto Iris Video / DC
Dimensions 3.5"(W) x 3.5"(D) x 2.3"(H)
Weight 6.4 oz


In the box:

  • DVR-H9108V Surveillance DVR with 1TB HD
  • (4) CM-P21323BK Color IR Security Outdoor Bullet Cameras
  • (4) CM-P21163BK Color IR Security Indoor Dome Cameras
  • (2) W-VP1008 25' Surveillance Video + Power Cables
  • (4) W-VP1015 50' Surveillance Video + Power Cables
  • (2) W-VP1030 99' Surveillance Video + Power Cables
  • 9-Port 12V/5A Power Adapter for CCTV Cameras
  • IR Remote Control
  • USB Mouse
  • User's Manual
